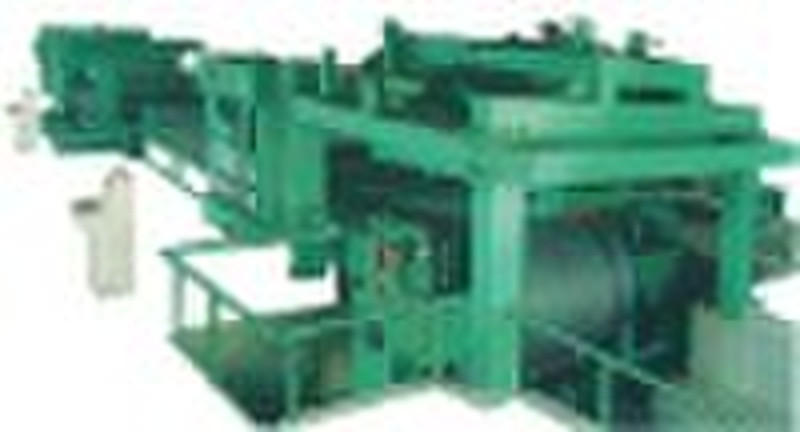

cut to length line

The Line with thickness from 0.18mm to 25mm, width from 200mm to 3000mm, cutting length tolerance within +/-0.1mmLeveling and Cut to Length Line series with thickness from 0.18mm to 25mm, width from 200mm to 3000mm, cutting length tolerance within ±0.1mm which are apply for various specifications and different materials coil. This production line is used for coil with different specifications, through uncoiling, leveling and cutting to length to flattened plate as needed length and width. This line is composed of coil car, double support uncoiler, pre-leveler, finish-leveler, length gauge, cut to length machine, stacker, servo driven system, etc. as well as pendulum middle bridge, pressing and guiding device and steering device. main technical parameter modelT44RD-T44RD-T44RD-T44RD-name2×13002×16003×13003×1600Coil thickness(mm)0.3-20.3-20.3-30.3-3Coil width(mm)800-1300800-1600800-1300800-1600Cutting length range(mm)10.0-999910.0-999910.0-999910.0-9999Stacking length range(mm)300-4000300-4000300-4000300-4000Cutting length precision(mm)±0.3±0.3±0.5±0.5Leveling precision(mm/m2)1-21-21-21-2leveling speed (2000mm/min)35pcs35pcs35pcs35pcscoil weight(T)10102020roll Dia.(mm)859090100 The Line with thickness from 0.18mm to 25mm, width from 200mm to 3000mm, cutting length tolerance within +/-0.1mmLeveling and Cut to Length Line series with thickness from 0.18mm to 25mm, width from 200mm to 3000mm, cutting length tolerance within ±0.1mm which are apply for various specifications and different materials coil. This production line is used for coil with different specifications, through uncoiling, leveling and cutting to length to flattened plate as needed length and width. This line is composed of coil car, double support uncoiler, pre-leveler, finish-leveler, length gauge, cut to length machine, stacker, servo driven system, etc. as well as pendulum middle bridge, pressing and guiding device and steering device. main technical parameter modelT44RD-T44RD-T44RD-T44RD-name2×13002×16003×13003×1600Coil thickness(mm)0.3-20.3-20.3-30.3-3Coil width(mm)800-1300800-1600800-1300800-1600Cutting length range(mm)10.0-999910.0-999910.0-999910.0-9999Stacking length range(mm)300-4000300-4000300-4000300-4000Cutting length precision(mm)±0.3±0.3±0.5±0.5Leveling precision(mm/m2)1-21-21-21-2leveling speed (2000mm/min)35pcs35pcs35pcs35pcscoil weight(T)10102020roll Dia.(mm)859090100
